Hydraulic Microcomputer Turbine Control Panel With Five Power Regulation Mode

Start-Up Command Shutdown Command Output Easy Control Of Hydraulic Microcomputer Governor Control Panel For HPP

Main Products:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

You can turn on and off regularly. (suitable for peak-valley power station)

1. measuring function: three-phase current, three-phase voltage, active power, reactive power, frequency, cos phi, active power, reactive power, 8-way temperature, etc., at a glance on the display screen.

2. automatic frequency modulation, automatic grid connection, automatic adjustment of reactive power. Automatic deexcitation, water off, water folding control and brake control during shutdown.

3. five power regulation mode, manual, knob potentiometer, set target power, automatic opening, automatic regulation according to the water level active power; Keep the plant running at high water level.

4. with speed, over current, reverse power, over load, under voltage, over voltage, low frequency, over frequency, three phase unbalance protection functions, and equipped with 8 line temperature inspection protection.

5. the fault immediately automatic magnetic, stop the water, can save 99 fault records, easy to query.

6. automatic/manual two sets of systems free conversion, to ensure the operation rate of equipment.

7. starting order, shutdown order output, easy control of hydraulic/microcomputer governor.

Product pictures:

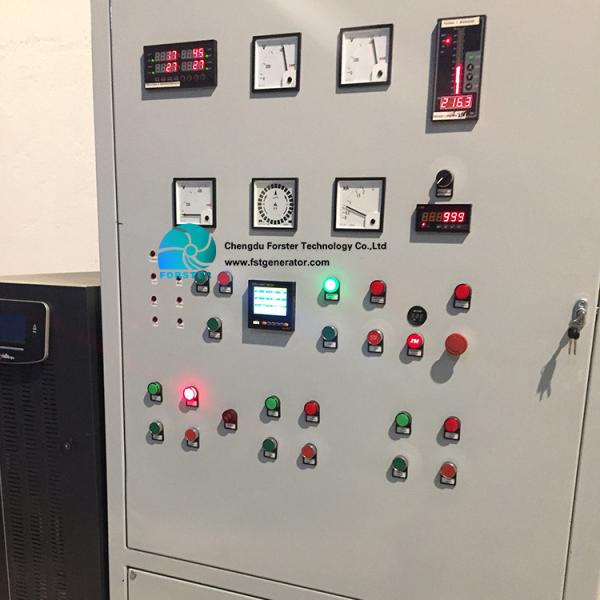

integrated control panel

generator control panel

Hydraulic Microcomputer Turbine Control Panel With Five Power Regulation Mode Images
